Technical Data (Standard Version)
Connection DN 25 – 100
Connection G ½ – 2
Nominal pressure PN 16
Operating pressure 0 – 16 bar
Flow rate 248 Nm³/h
Temperature 130 °C
Description

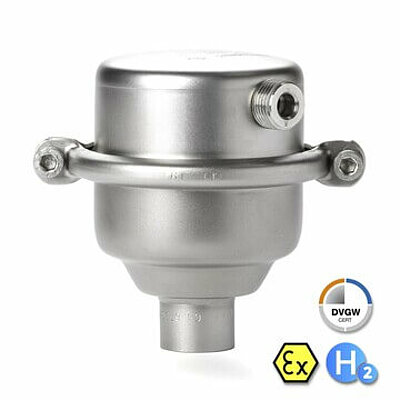

Air and gas vents discharge air or gases from systems or piping without external power. When draining systems, they function as air vents. The EB 1.12 air and gas vents are float-controlled, compact, and lightweight devices for water treatment (including ozone), piping, fuel tanks, etc. They are made of deep-drawn stainless steel with excellent corrosion resistance. The valve cone is designed with a soft or metal seal. The EB 1.12 is available in three housing variants for small, medium, and large flow rates.
Applications
Liquids
Standard
» Entirely made of stainless steel
» Quick-release housing
Options
» Ozone-resistant version
» Various sealing materials, suitable for your medium
» Plastic coating for aggressive liquids
» Special materials such as duplex, superduplex, or titanium; others available upon request
» Special connections: aseptic, ANSI, or JIS flanges; weld ends; other connections available upon request
» Special versions available upon request
Variants
EB 1.12
EB1.12 ATEX
EB 1.12 ATEX H2
